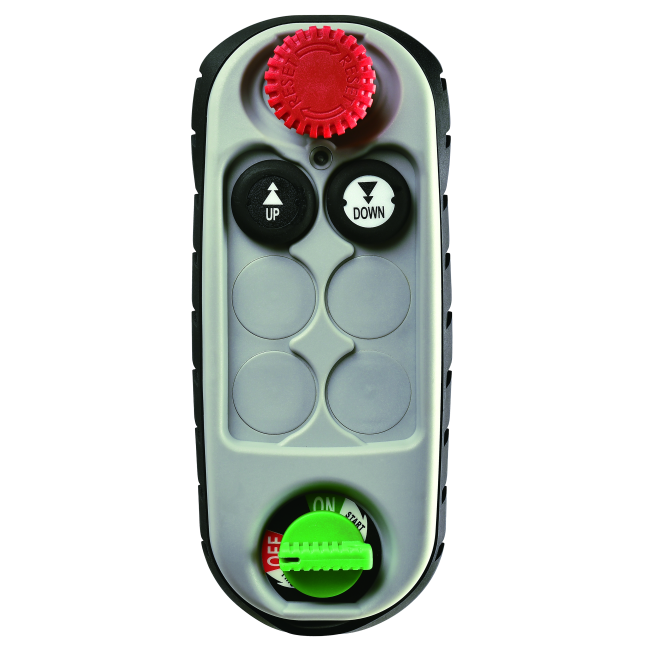

Rotary Selector Switch
2 & 3 position selector switches typical for Tandem crane system.These switches give operator clear status of switch.
Enter password to unlock the restricted pushbuttons. It prevents unauthorized operation.
The operator can only start a movement if operator actuates the safety button and keeps the button in the actuated position. The movement is stopped again when safety button is released.
e-Card is an integrated circuit that is intended to securely store system data and its related ID code. e-Card is plug-and-play when replacing or adding new transmitter.
Both transmitter & receiver made by fiberglass and use PTFE membrane (breathable but repelling the liquid water) for quick equilibrium of pressure to reduce stress on enclosure seal when using outdoor.
Security Enhanced against radio attacker
Advanced real time Security Random Code (SRC) preventing unauthorized operation.
Powerful software provides great flexibility to meet most of industrial applications. Rangergo is available on Android (smartphone) and Windows.
TR1 transmitter works as duplicator of e-Card
Synchronize e-card instantly on site without extra device require.
Teleranger Dynamic Frequency Selection automatically select frequency channel with low interference levels for operating.
Enhanced signal range and stability (Internal antenna)
TR1 intelligently strengthens radio connectivity using TDFS technology. This ensures extended coverage and enhanced stability.
Adjustable operating range
Transmitter emission power adjustable for extending battery life.
Use AA size Alkaline or rechargeable battery is acceptable. TR1 also uses RCR-V3 lithium rechargeable battery as an option.

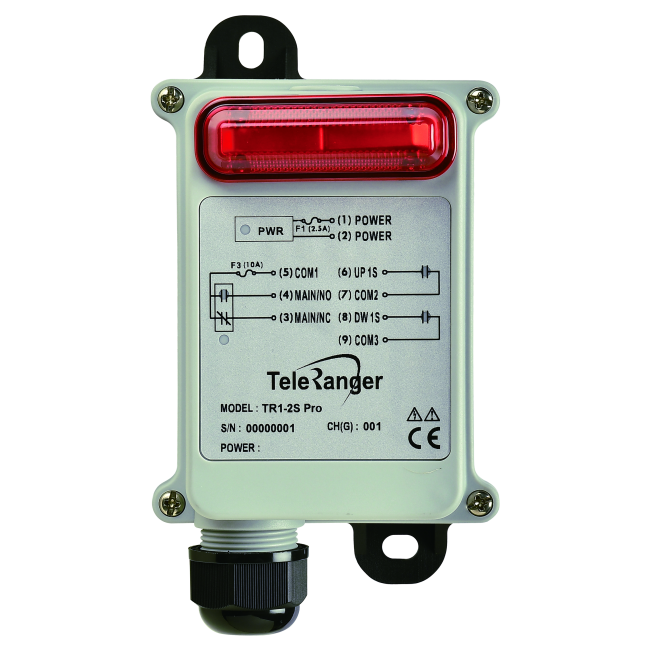

Large LED power indicator enhanced visibility. Easy disassembly receiver for service (PCB module fix on the upper housing).
Relay module Expansion
Add extra relay module when need.
Super Surge Protection (Switching Power Supply)
